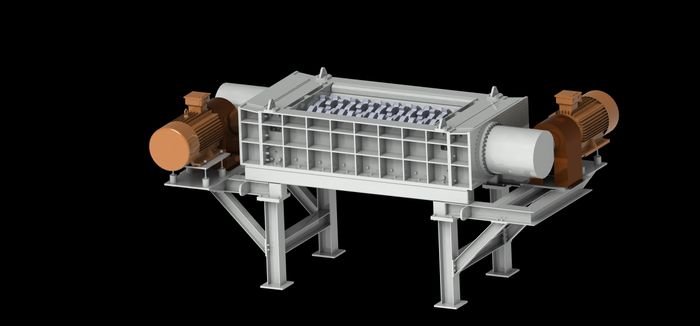

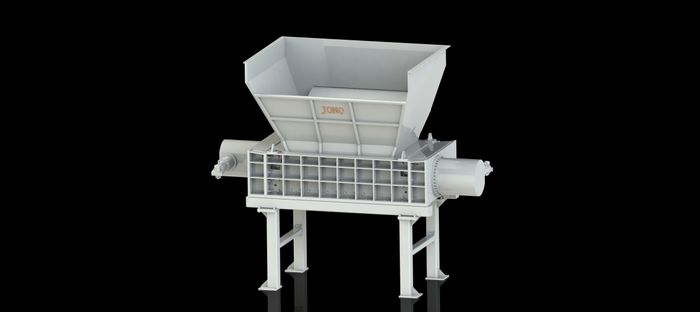

Primary Shredder
)
)
)
)
Primary shredderworking principle:
Driven by the hydraulic motor,two main shafts with special-shaped knives rotate in the shredding chamber.By the action of tearing,shearing,and squeezing caused by knives and counter-plate,material is shredded into smaller pieces,which makes the later treatment or transportation easier and more efficient.
Aries1200 | Aries1600 | Aries2000 | |
Shredding chamber (L×W) | 1.2×1m | 1.6×1.2m | 2×1.3m |
weight (machine body) | 12t | 19t | 25t |
power | 2×55/75KW | 2×(75-132)KW | 2×(90-160)KW |
Number of shaft | 2pcs | 2pcs | 2pcs |
Knife thickness | 20-50mm | 30-80mm | 50-100mm |
Speed of main shaft | 10-50r/min | 10-50r/min | 10-50r/min |
Output size | 50-300mm | 50-300mm | 50-300mm |
)
)
)
)
)
)
)
)
