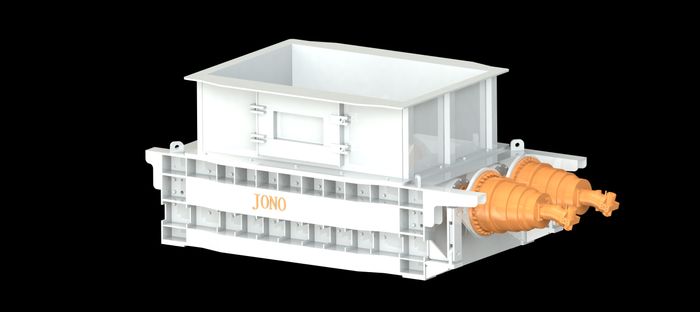

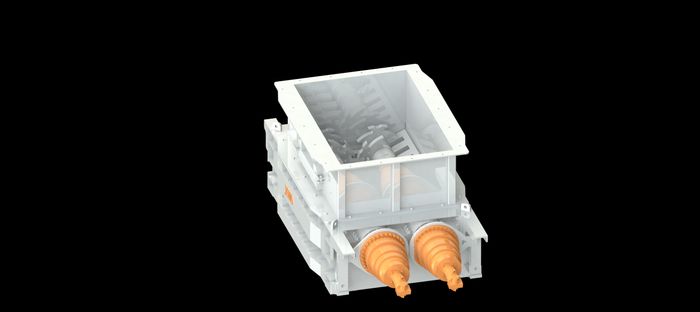

Primary Shredder
)
)
)
)
Working Principle
Driven by hydraulic motor,two shafts with special-shaped knives rotate in the shredding chamber.After the material dropping into shredding chamber,it was torn,sheared,and squeezed under the action caused by knives and counter-knives.By this way,the material was shredded continuously.
Model | LEO2618 | LEO1816 | |
Dimensions (L×W×H) | 4.8×2.6×1.1m | 3.9×2.5×1.1m | |
Shredding chamber (L×W) | 2.6×1.8m | 1.8×1.6m | |
Weight (machine body) | 20t | 14t | |
Power | 250-315KW | 160-200KW | |
Number of shaft | 2pcs | 2pcs | |
Number of knifes | 24pcs | 16pcs | |
Knife thickness | 80mm | 80mm | |
Speed of main shaft | 10-30r/min | 10-30r/min | |
Output size | 90% ≤250mm | 90% ≤250mm | |
Capacity | MSW | 40-60t/h | 15-30t/h |
Bulky waste | 10-30t/h | 5-10t/h | |
Industrial waste | 20-40t/h | 10-20t/h | |
)
)
)
)
)
)
)
)
